LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

90667W45

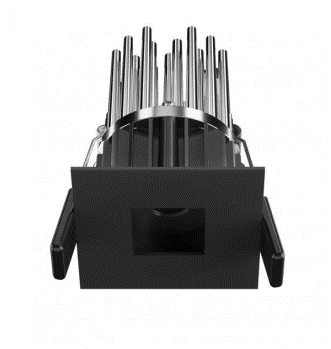

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.192 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

384LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

SIMES

FOOT LIGHT

OUTDOOR LIGHTING

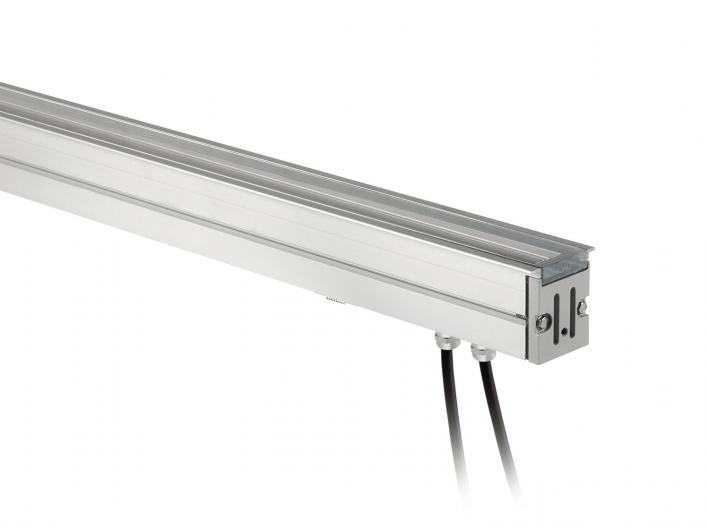

Inground walk over fitting. Recessing depth 125 mm. IP rating IP67. Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. Luminaire hard wired with H05RN-F neoprene cable 5m with cable gland. Isolation: CLASS III . Available colours: Stainless steel (cod.19). Weight: 1.1678 Kg Glow Wire test: 750°C.

IGUZZINI

LINEAR DOWNLIGHT

INDOOR LIGHTING

Recessed rectangular luminaire with LEDs. Shaped steel sheet structural compartment with outer rim. The two linear elements with 15 lighting cells, in die-cast aluminium and independently adjustable, can be used to direct the emission with a tilting adjustability of +/- 20°. Metallised thermoplastic high definition optics, integrated in a rear position in the black anti-glare screen.
