LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
90667W30

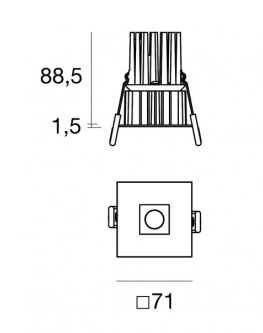

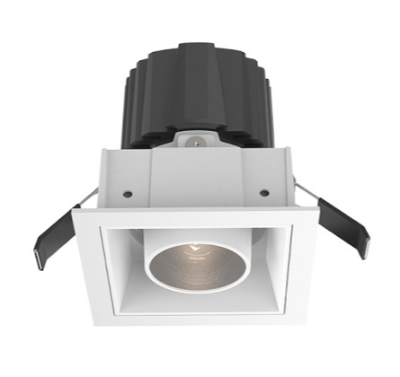

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.192 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
8W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
283LM
Finishing
BLACK
IP Rating
IP44
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

LINEALIGHT
CEILING LIGHT
INDOOR LIGHTING
Single emission ceiling lights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1036 lm, with a 115.1 lm/W nominal luminous efficacy. The device body is made of PC and features a black finish The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate with a metallization treatment. The ingress protection degree is IP20; the total weight is of 0.700 kg. The total absorbed power is 11 W. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions
APEX
LED STRIP
INDOOR LIGHTING

Flexible high lumen LED Strip in 120 degree beam, 80 leds/m. 100mm cut length 24V voltage. CCT available from 2300K - 6000K. Suitable for Indoor and Outdoor application. DIMENSION : L1000*W 8 mm.

LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING
Draco is the tallest member of our cylinder lighting family. Its strong long form utilises LEDil reflectors and Osram chips (with 1 and 2 Macadam's Ellipses colour consistency). Draco is available is in a full range colour temperatures and with integral control gear as standard.
ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed pinhole downlights designed with a “dark silent ring” for optimum glare control. Incorporating ELR’s signature modular concept design, LED modules are fully interchangeable with various choices to provide optimal illumination for all kinds of spaces.
