LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
90679W15

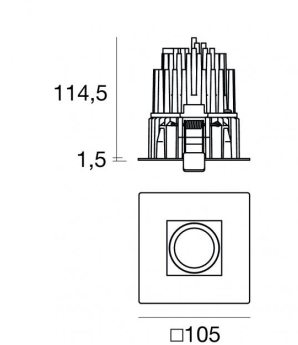

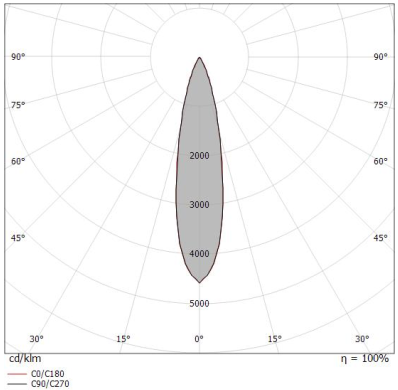

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
15W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
792LM
Finishing
BLACK
IP Rating
IP44
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

LIGHTFORMS
RECESSED LINEAR LIGHT
INDOOR LIGHTING
Lightplane 6 Recessed is a large recessed slot light available either with a small 12.5mm trim or in a trimless version. The luminaire can be installed both vertically and horizontally to form continuous or individual rows. Available with several LED lamping options including multiple outputs, CCTs, tunable white, and color-changing RGB+White.
SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING
Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.. Different type of bean angles.
SPARK
SURFACE TRACKLIGHT
INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request.

LINEALIGHT
UP/DOWN WALL LIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.5 kg. The power supply cable is included and features a 1 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99856 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
