Product Detail
Home Products Detail

Products

LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
90673W60

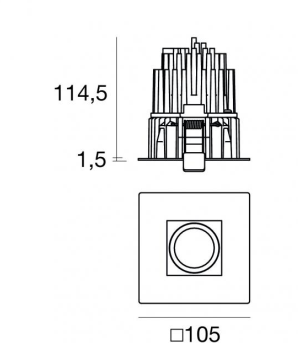

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
15W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
768LM
Finishing
BLACK
IP Rating
IP44
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

FORMALIGHTING
LINEAR LIGHT
INDOOR LIGHTING
The Microline system is a custom design for a major retaillighting project. Surface-mounted modular linear LED system in extruded aluminum. Available in different lengths and configurations. LEDs in a wide variety of color temperatures, High Color Rendering with CRI up to 97 and R9 >90. Multiple diffuser options at your disposal can greatly enhance the overall aesthetic and functionality of a space. Dimming options are determined by the Power Supply, Remote Power Supply not included, to be ordered separately. Available in different lengths from 55 mm to 2035 mmand section length : 45 mm.
SPARK
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

Surface mounted downlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

XAL
LINEAR DOWNLIGHT
INDOOR LIGHTING
Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with three medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free
UNILAMP
UNDERWATER LIGHT
OUTDOOR LIGHTING
ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.
