SPARK

Square ceiling light made of die-cast aluminium; black powder-coating finish (RAL 9005); Phase Dim Driver; System Power 20W; measurement 224mm x 135mm; luminaire’s height is 60mm; luminaire head rotation 360° and pivot max. 25°; Dimto-Warm (1800K-3000K) with a System Luminous Flux of max. 1300lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient BRIDGELUX LED Chips; 5 years warranty.

Luminaire housing made of extruded aluminium profile; recessed light with wrap around edge; for continuous lighting systems; suitable for ceiling thickness of 8-25 mm; surface black powder coated; luminaire profile can be pre-mounted; pre-assembled power rail for power supply in luminaire profile; voltage tap of the light inset on the power rail; remaining lamp components mounted without tools; LED light inset consisting of highly reflective lacquered aluminium for improved thermal management; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; HPO (High Performance Opal) cover for uniform illumination;  degree of protection IP20; PC1 220-240V; photobiological safety according to IEC 62471 risk group RG 0 - no Risk; internal wiring in light halogen free; incl. DALI-2 converter; accessories are listed separately; light source replaceable by an authorized professional;  control gear replaceable by an authorized professional;

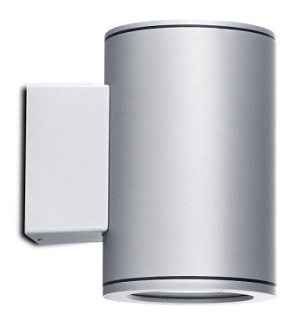

Aquila is a cylindrical fitting with strong form and excellent lighting performance. The construction is an extruded aluminium housing with a flush-fit sand blasted glass lens. For an even distribution across the glass, the led is controlled by a narrow beam LEDil optic. Aquila is fully customisable in size, and available in a full range of colour temperatures, finishes, power feed types and lumen outputs.

Recessed luminaire applicable to the floor or ground, designed for fitting monochrome white LED sources, for illumination, fixed optic, with incorporated electronic control gear. The round frame has a diameter D=137 mm; the body and frame are made of AISI 304 stainless steel with anti-slip glass (conforming to Class R13 pursuant to DIN 51130), 12mm thickness and internal methacrylate opal diffuser. Stainless steel body coated with black paint.
