SPARK

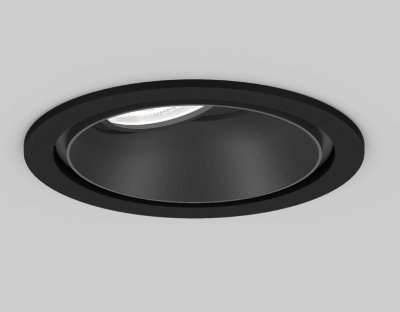

Recessed round downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre.

Recessed rectangular luminaire with LEDs. Shaped steel sheet structural compartment with outer rim. The two linear elements with 15 lighting cells, in die-cast aluminium and independently adjustable, can be used to direct the emission with a tilting adjustability of +/- 20°. Metallised thermoplastic high definition optics, integrated in a rear position in the black anti-glare screen.

Relay module support opening and closing of 9 channels 20A single pole single throw relays for resistive, inductive, capacitive load. 220V ± 10% 50Hz, 20mA. Phase-independent. Manual over-ride for any channel. Intelligent "built in" progragation can be set. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure).
