LINEALIGHT

PURE S

PUS1-9271515F-WW

Tracklight round made of die-cast aluminium for 3-Phase Track System with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 15W; measurements tracklight Ø72mm x 140mm; rotation 355° and pivot max. 90°; CCT 2700K with a System Luminous Flux of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 15° beam angle; degree of housing protection IP20

Outdoor inground uplight body and front locking trim in AISI 316L stainless steel. IP68 Degree of protection with Full Dry system which avoids condensation inside the product. The Installation of the recessed housing in cast concrete with a 20-30 cm gravel soak away. Only an IP68 connection to the power supply can guarantee the same protection to the fixture. IK10

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Clear safety glass Silicone gasket Optical silicone lens · BEGA Hybrid Optics® Reflector surface made of pure aluminium Rotation range of floodlight 350°. IK09 Symmetrical wide beam light distribution Half beam angle 64° By changing the diffuser lense it is possible to alter the symmetrical light distribution into a flat beam light distribution. Luminaire data for the light planning program DIALux for outdoor lighting, street lighting and indoor lighting. The ingress protection degree is IP65,IK09.

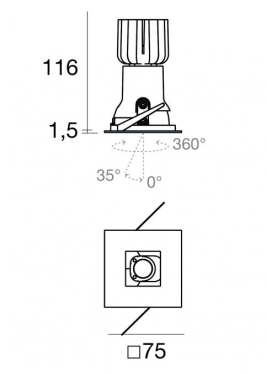

The Eclipse Soft is a recessed, tilt behind, adjustable downlight with a beautifully sculpted, trumpeted-shaped bezel. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires
