LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
81287W60

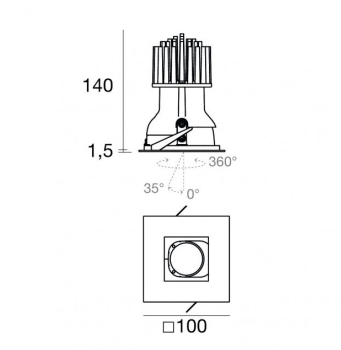

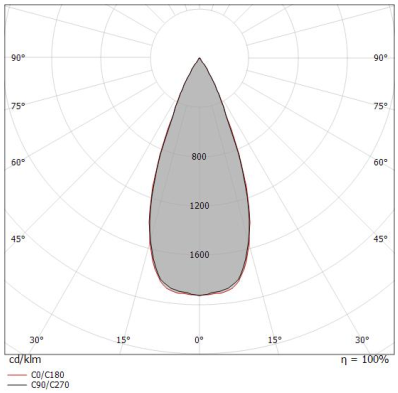

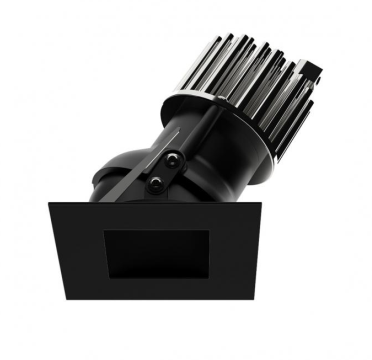

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.462 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
15W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
609LM
Finishing
BLACK
IP Rating
IP44
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

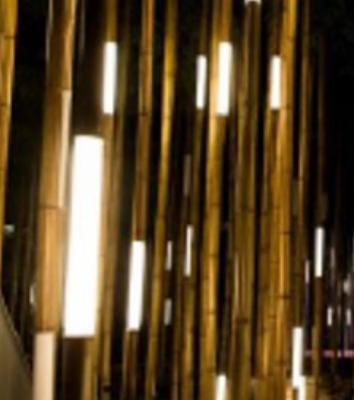

Single emission lines for outdoor application. The warm white LED light source with a elliptic light distribution is composed of 9 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 5.5 kg. The total absorbed power is 51 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99771 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING


IGUZZINI
SURFACE TRACKLIGHT
INDOOR LIGHTING

Adjustable spotlight with adapter for installation on an electrified track. High chromatic yield LED lamp with 3000K tone and OptiBeam Lens optic system and Flood optic. Luminaire made of die-cast aluminium and thermoplastic material that allows a 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane with mechanical aiming locks. Passive heat dissipation. Spotlight with “Push&Go” system designed to hold up to

three flat accessories at the same time. The same system can also be used to apply another external component selected from the directional flaps and anti-glare screen. All internal accessories rotate 360° about the spotlight longitudinal axis.

LUCE & LIGHT
SPOTLIGHT
OUTDOOR LIGHTING

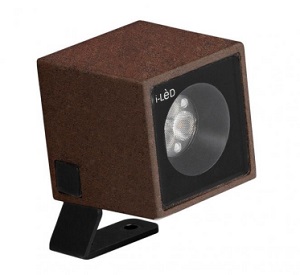

Pivot 2.0,projector for outdoor applications surface mounted (ceiling, wall, ground, spike), surface mounted (ceiling, wall, floor)Power consumption: 10W, 14WPower supply: 24Vdc

Lumen output at source: 1173 lm (3000K, 14W, CRI >90), 1397 lm (3000K, 14W, CRI 80), 821 lm (3000K, 10W, CRI >90), 978 lm (3000K, 10W, CRI 80)

Delivered lumen output: 1064 lm (3000K, 25°, 14W, CRI 80), 676 lm (3000K, 25°, 10W, CRI >90), 835 lm (3000K, 25°, 10W, CRI 80), 862 lm (3000K, 25°, 14W, CRI >90),1 COB LED, 3-st
