LINEALIGHT

Spotlight to be installed on 3-phase track. with LED light source. 220-240V, 50-60Hz power supply integrated.

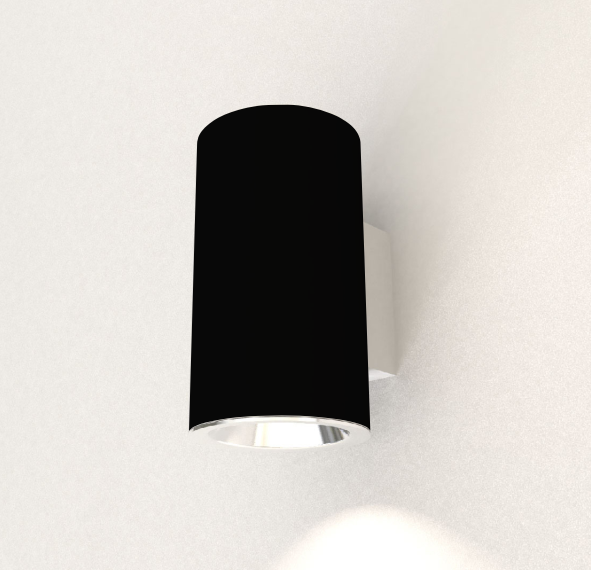

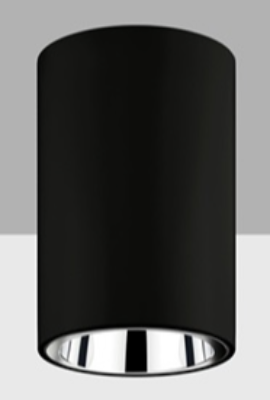

A super compact cylindrical light source with a huge range of optical options. The construction is an extruded aluminium housing packaged with either optic, reflector or LED engine - but always in the classic and clean cylindrical form. Control gear is generally always integral, but this may be restricted with certain outputs, control types and additions. But we can always work this out for you.

Reflector in metalic-finish thermoplastic material with scratch protection for excellent lighting efficiency and visual comfort. General lighting versions available with reflector. The ingress protection degree is IP40.
