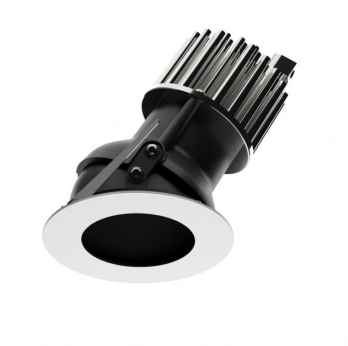

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

90675W60

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

735LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 225 topled LEDs. The device body is made of uv resistant polycarbonate and features a black finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP67; the total weight is of 1.40 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.25 m length. The device features protection class III and can be wall lights or floormounted. Compliant with the EN 60598-1 standard and its specific provisions.

MEYER

WINDOW LIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, high effiency safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, 2 drilled holes Ø 6 mm, spacing 259 mm, 4 x M6 grub screws to offset inclined surfaces, cable gland: 2 x M20, connecting terminal: 3 pole, high‑end optical system with specially designed reflectors achieve a uniform arch of light, integral driver (AC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 12° / 180°, luminous flux: 930 lm, wattage: 13 W, delivered lumens 70 lm/W, protection type IP67, protection class I, impact resistance IK08, dimensions (L×H×W): 270 × 70 × 125 mm, weight 1.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

FLOS

WALL LIGHT

OUTDOOR LIGHTING

LED light source included. Integrated 220-240V ON/OFF and 1-10V or DALI dimmable electrical power. Equipped with double cable gland for electrical connection.

DELTALIGHT

CEILING LIGHT

INDOOR LIGHTING

The recessed Tweeter versions enable a maximum fuse of light and architecture. The spotlight heads are identical to the surface mounted installation and handling is simple and convenient. The double shell design prevents ceiling exposure, while the flexible inner shell tailors for any lighting need.
