LINEALIGHT

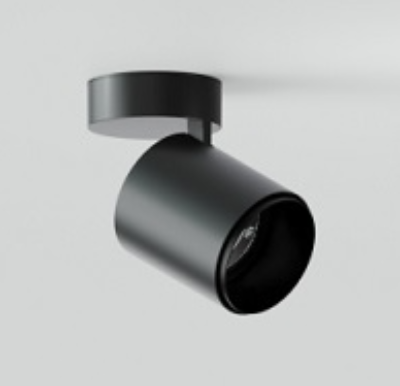

A small architectural grade spotlight that combines technology and performance in a modern form factor. Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Supplied standard with designer optics, providing superb color-over-angle consistency. Available with integrated Dali control, 0-10 V dimming or as non-dimmable. DIMENSION: 235(L)*68(W)*228(H).

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60‑100mm, adjustable aluminum mounting base, powder coated: 2 drilled holes Ø 9mm, tilt range: 80°, cable gland: M20, connecting terminal: 3 pole, tilt range: 180°, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 22°, luminous flux: 1445 lm, wattage: 55 W, delivered lumens 26 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 7.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
