Product Detail | Bloxlimited

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

80017W45

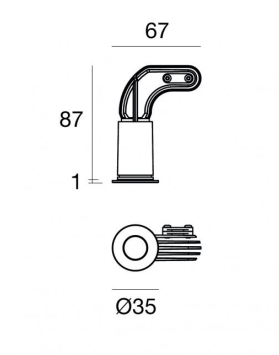

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

199LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

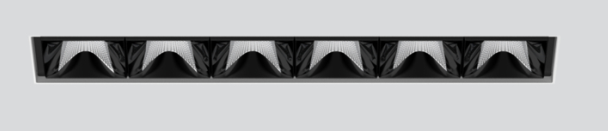

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six wide flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 72°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

CLEAR LIGHTING

LED STRIP

OUTDOOR LIGHTING

FLEXGLO F16 Vertical Bending silicon LED strip, min bending diameter 50mm. Anti-yellowing and come in Mono CCT, tunable CCT and RGB / RGBW version. Solvents, UV, Flame and Salt water resistant. IK08 Protection.

LIGHTFORMS

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

MoonRing 1 sweeps through and around interior spaces with peaceful, harmonic halos of light. Available in suspended and surface mount models, the luminaire achieves its mystical, soft gleam from a low wattage decorative LED source weaved within a narrow housing. Choose from several different diameter rings comprised of four joining segment arcs. Or, creatively join segment arcs together to form half-circles, S-shapes, ovals and other curved configurations. MoonRing can also be joined with straight sections of Lightplane 1 S.

LINEALIGHT

PENDANT

INDOOR LIGHTING

Single emission pendant luminaires for indoor application.The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of iron and features a embossed black ral 9005 finish, processed by means of powder coating The device body is made of aluminium 6060 and features a 5g 9005 black finish, processed by means of powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP40; the total weight is of 1.2 kg. The power supply cable is included and features a 1,8 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
