Products

LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
80065W45

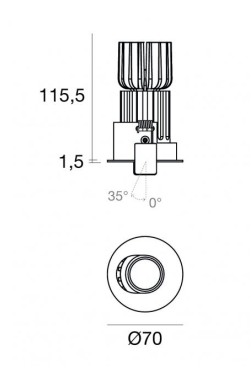

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.400 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
10W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
583LM
Finishing
WHITE
IP Rating
IP44
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING
RGBW Colour Changer. Stainless steel construction including PCS hardware. Safety glass lens. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. LED circuit board with WEEF Colour Boost Technology. DMX Interface.
PROLICHT
CEILING LIGHT
OUTDOOR LIGHTING

With SIGN EVO RECESSED, the SIGN EVO family is expanded by a high performance recessed luminaire that combines advanced lighting technology with smart installation solutions. Designed for ceiling integration – even at extremely shallow installation depths – it opens up new creative and technical possibilities.


LINEALIGHT
RECESSED DOWNLIGHT
OUTDOOR LIGHTING

Single emission downlights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP67,IK10.

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

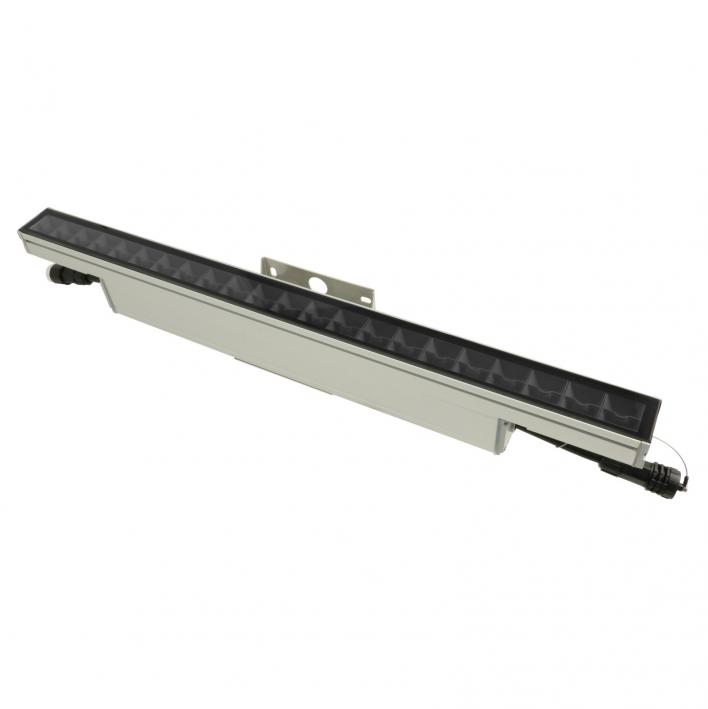

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98725 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
