LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

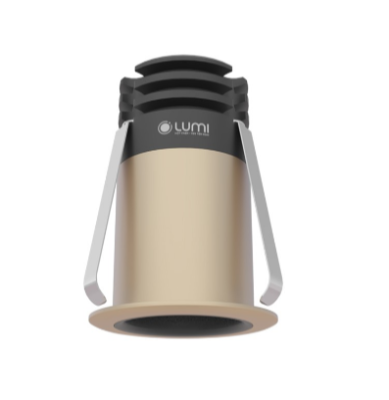

90731W15

Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 30 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

61LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LINEALIGHT

LED STRIP

OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a flood light distribution is composed of 108 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 6900 lm, with a 104.5 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a black finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 2.075 kg. The power supply driver is not provided and is to be ordered separate

LUCI

LED STRIP

INDOOR LIGHTING

2 types of LED pitch (7.1 or 17.8mm) for profile and cove lighting. The 5 wattage options, ranging from 2 to 15W/m, utilize the same LED package to ensure consistent CCT. High efficient LED package achieving up to 185 lm/W

APEX

LED STRIP

INDOOR LIGHTING

TUNABLE LED Strip 120 degree beam, 192 leds/m. 62.5mm cut length 24V voltage. Tunable color 3000K - 6000K. Suitable for Indoor and Outdoor application. IP20 / 65 / 67. DIMENSION : L1000mm x W10 mm.

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 12°, luminous flux: 4391 lm, wattage: 48 W, delivered lumens 91 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 192 × 162 × 140 mm, weight 2.16 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
