LINEALIGHT

Step light for outdoor applications; surface mounted (wall); Power consumption: 12W; Power supply: 230Vac; Lumen output at source: 1512 lm (3000K); Delivered lumen output: 736 lm (3000K, white finish); 36 mid-power LEDs, 3-step MacAdam, 50 000h L80 B10 (Ta 25°C); LED colour: 3000K; Optics: asymmetrical; Upward flux fraction: 5,32% (white, grey finish); 0,14 % (cor-ten, anthracite finish); CRI Colour Rendering Index: 80; Body material: body in die-cast aluminium; Finishes: anthracite; RAL finish on request; Screen material: screen in serigraphed extra-clear microprismatic glass; built-in power supply unit; includes 1.5 m neoprene cable H05RN-F 3x1,0 Ø7 mm; Ingress protection: IP65; Impact resistance: IK08; Casambi-compatible version, controllable with the Casambi app, available on request; Operating temperature: -20°C — +45°C; Dimensions: 209x101x32 mm.

The fixture has a round symmetrical design with four rings reflecting the light in a soft downward direction. The rings have a soft glow while their white underside achieve optimal light reflection and produce a characteristic symmetric light pattern on the ground.

The adapter is positioned externally from the fixture and can run up to 4 bollards. Maximum distance to last bollard is 30m. Spike: Uses standard cables and connectors which are supplied. Plug and play. Anchor/Base: Use installation cable for legal fixed installation. Adapter requires installation by certified electrician if used with anchor or base.

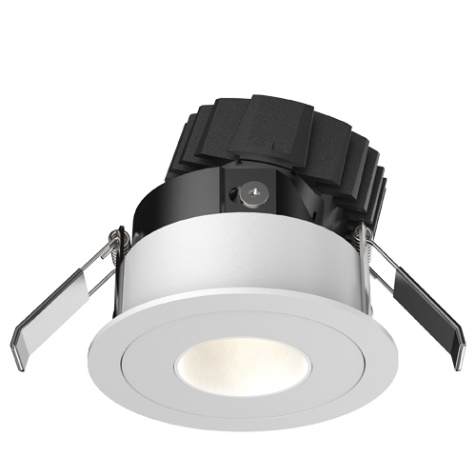

Recessed pin-hole downlight made of aluminium housing with white powder coated finish. Black finish available upon request. Luminaire come with 2 different sizes, 6-8W in Ø63mm and 8-15W in Ø90mm.
