LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
90739W15

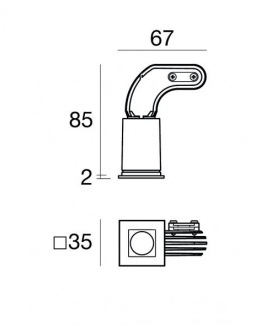

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
170LM
Finishing
BLACK
IP Rating
IP44
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

PUK
SPOTLIGHT
OUTDOOR LIGHTING
Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 1310” LED. IP66 rating.
DALITEK
CONTROL SYSTEM
CONTROL SYSTEM

The module realizes the opening and closing control of three circuits by controlling three 20Asingle pole single throw (SPST) relays, and various logic timing control can be realizedthrough configuration. The module has an internal temperature sensor to monitor theoperating temperature to ensure safety.The module is compatible with other a dry contact input module.The module can form a control system with panel, clock, sensor and other equipment throughRS485 bus.

PUK
FLOODLIGHT
OUTDOOR LIGHTING
Floodlight for outdoor installation on a façade/wall, with U shape fixing bracket allowing vertical adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets, with screws in stainless steel. Remote 24V DC power supply needed, with 1 x CREE “XHP35” LED. IP66 rating.
LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
Lightplane 1 H features a 25mm linear channel and delivers both direct and indirect lighting. This small channel allows for minimal linear lighting in suspended, wall and surface (direct only) applications. Driver is REMOTE.
