LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

90823W15

Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 46 x 46 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

78LM

Finishing

BLACK

IP Rating

IP44

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LUMASCAPE

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

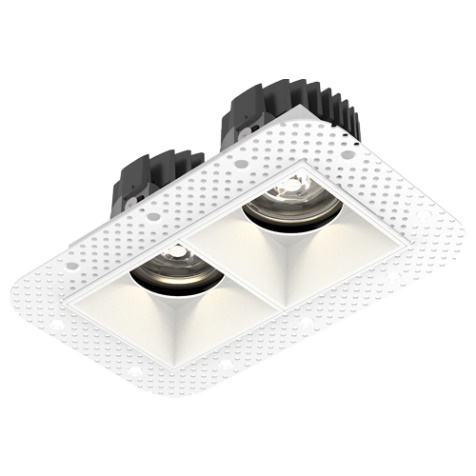

Square recessed double head downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 2*13W; measurement 140mm x 72mm; ceiling cutout of 147mm x 80mm for trimless installation (Easy Installation); rotation 355° and pivot max. 30°; CCT 3000K with a System Luminous Flux of 2*800lm; high color rendering at an index of CRI90; after a lifetime of 50000h L80B10 min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54); impact resistance of the luminaire is in the class IK06; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six narrow medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 22°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;
