LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
90781W30

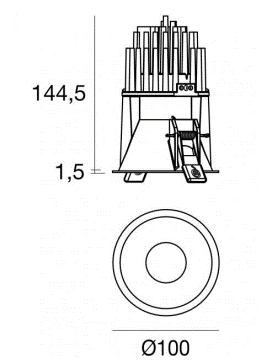

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 92 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 15W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 729LM
- Finishing
- BLACK
- IP Rating
- IP44
- Color Rendering
- CRI 92
- Driver
- ON/OFF DRIVER
