LINEALIGHT

TA8 + LED Module_M3-9303511A-TA8-WWW

Round spotlight for recessed installation made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 0-10V Dim Driver; LED 11W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 200g; rotation 355° and pivot max. 18°; CCT 3000K with an LED Output of 1100lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy ef

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 1.05 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 121 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

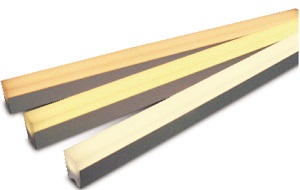

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.
