90749W60

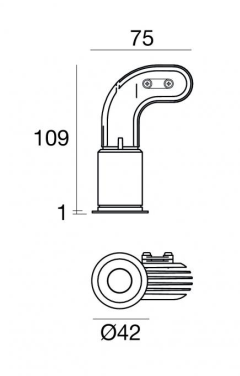

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
331LM
Finishing
BLACK
IP Rating
IP44
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

IGUZZINI
SURFACE LINEAR LIGHT
OUTDOOR LIGHTING
Direct light linear luminaire, designed to use monochrome LED lamps. The product can be installed using pairs of arms, ceiling/ground/wall-mounting bases, stakes, and pendant rods and cables (to be ordered separately). The body is made of extruded aluminium and includes die-cast aluminium end caps with 50/60 Shore A silicone seals.
LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

The Target Line is increasingly becoming a Light Forms classic. Many lighting design opportunities here. All the mounting options, including track. A huge range of LED optics (wide, narrow, black, chrome, white..). Integral control gear, in a very compact form. The Target Line can have integrated Linear LED, but the main feature with the Target Line is the precision Low Glare optics. These precision optics allow plenty of lumen range, in a Low Glare, compact package. The aesthetics and size of the Target Line mean its got the correct look and performance for all applications. Control gear is always integral, despite the compact form - and the full range of extras is available - sensors (CP, Simmtronic, Hytronik, Tridonic + Others), emergency, daylight harvesting, Casambi, Power over Ethernet (PoE) & many other integrated additions.

SPARK
LINEAR DOWNLIGHT
INDOOR LIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.

FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round or Square mounting trim in cast aluminium with spring for installation mounting on a ceiling thickness of 1-25mm. Luminaire body in cast alluminum. Easy relamping tool-free via removable lamp front ring. Available in two different sizes. Adjustable version tiltable vertically 0-40° and rotatable horizontally 350°.
