LINEALIGHT

Round light fitting in aluminium; recessed light with wrap around edge; suitable for ceiling thickness of 10-25 mm; surface white powder coated; installation without tools using snap spring closure; external converter for ceiling insertion, through-wiring suitable; electrical connection by means of reverse polarity protected plug system; LED board highly reflective lacquered for higher efficiency; light colour 3000 K; binning initial MacAdam Notes Count / Date General Ceiling / Wall , Recessed white , RAL9010 IP40 4020 lm 1 LED 3000 K CRI ≥ 80 L90 / 50000 h photobio. safety RG 0 - no Risk initial MacAdam ≤ 3 SDCM MR 0.54 MDER 0.49 Optical Opal PstLM ≤ 1.0 SVM ≤ 0.4 2 2 Electrical DALI-2 31 W PC1 220-240V 130 lm/W 1 DALI Addr. ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; flush ceiling light level; completely homogeneously illuminated, satin PMMA cover.

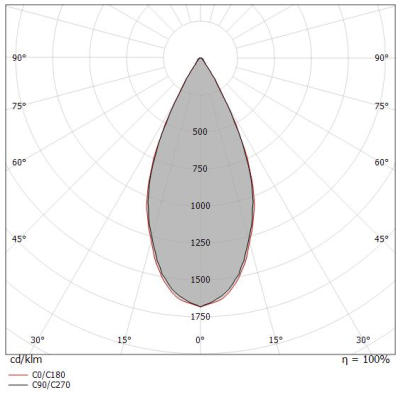

The pendant luminaire SIGN DIVA TUBE from the familiy SIGN consists of aluminum. With 3 powder coated options 15625 colour combinations can be achieved. The ballast is integrated and allows for an operation with 220-240V (50/60Hz). SIGN DIVA TUBE (# 410-4302) is dimmable via BUS. The luminaire with direct illumination and corresponds to protection class SK1 at IP20. POLAR CURVE Measurement based on the color white

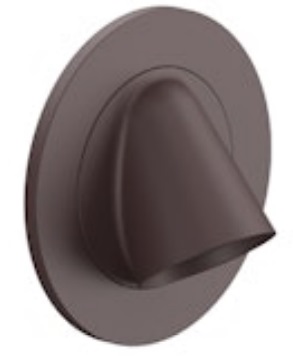

Single emission uplights for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. Luminaire body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68. IK10
