LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
96634W60

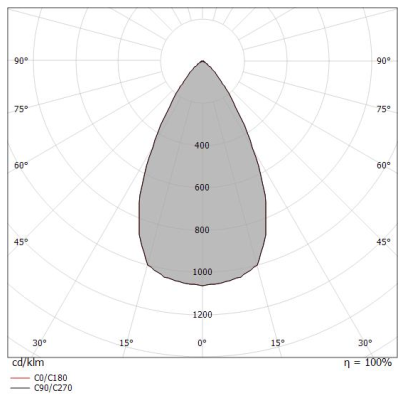

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a white ral 9010 finish, processed by means of coating. The ingress protection degree is IP45; the total weight is of 0.090 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
453LM
Finishing
WHITE
IP Rating
IP45
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Aluminium housing adjustable downlight, wide-open shape die-cast aluminium heatsink design to enlarge the heat dissipation area, leading to a high heat dissipation efficiency and long-life on the fixture. Small cut-out diameter 55mm suitable for tiny ceiling.

ELR
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Recessed round downlight compatible with 35 and 50 series LED modules. Various color temperature from 2700K to 5000K, TuneWHITE and Warm Dim etc. Up to 50,000 hours L80 lamp life with LM80 tested. LED chip packages. Beam pattern options 10, 20, 35, 60. Lumen from 310lm to 1600lm depending on LED module. 77mm cutout, Pinhole aperture 24mm. ATePS Automated Thermal Protection System. ComfyEYE, reduced flicker percentage. Interchangeable LED module system. Optional linear spread lens, IP54 seal, colour, light effect filters and honeycomb anti-glare louvre

ELR
RECESSED DOWNLIGHT
INDOOR LIGHTING


PHOS
WALLWASHER
OUTDOOR LIGHTING
The Eyeconic Round Wall Wash is a recessed, fixed downlight with a 80mm bezel, wall wash lens and a discrete removeable anti-glare guard. Unique, elegant small aperture. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
