LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

96635W15

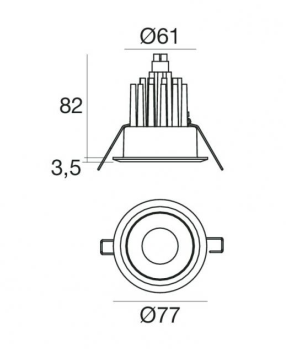

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 4 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.24 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 65 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

695LM

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

FORMALIGHTING

FRAME PROJECTOR

INDOOR LIGHTING

Advanced, multi-functional LED surface mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and a high degree of lighting uniformity.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 95 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

BROWNIE

WALLWASHER

INDOOR LIGHTING

Available in 16° and 20x40° beam angle. Our V-Wash II provides long beam throw for wall washing and grazing effects, and as well as indirect illumination in retail, hospitality, and entertainment environments. V-Wash II also comes with rotatable mounting clip which allows flexible mounting and positioning in various environments. DIMENSION : D24*L1120MM
