LINEALIGHT

DR7 TUNABLE WHITE LED (25W for light source) standard trim recessed luminaire with 50° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 220-240V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 175° movement through the pan axis and •+/-35° through the tilt axis, at a resolution of less than 1° in either axis.

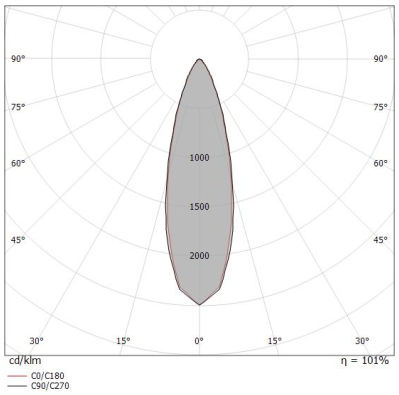

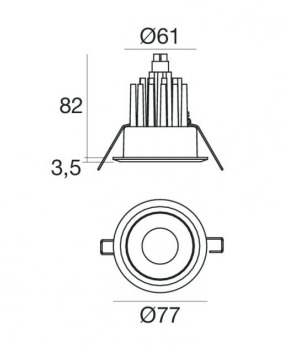

Single emission recessed downlights for indoor application. The super warm white LED light source with a narrow spot light distribution is composed of 1 powerled LEDs. The luminaire body is made of technopolymer and features a white ral 9003 finish; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40.

Single emission projectors for outdoor application. The warm white LED light source with a flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP65; the total weight is of 0.15 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights, ceiling or floor-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Office linear light system offering high efficiency 142Lm/w, microprismatic lens technology keeps glare to a min UGR<19, ensuring a comfortable visual experience. The lights feature DALI 2.0 DT8 for easy dimming and CCT tunable from 2700K - 6500K. The fixture connect seamlessly for a uniform lighting effect and the prewired trunking rail with 11 cables simplifies installation and maintenance.

Optics available 45°, 50° and 60°.
