Product Detail | Bloxlimited

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

97402W12

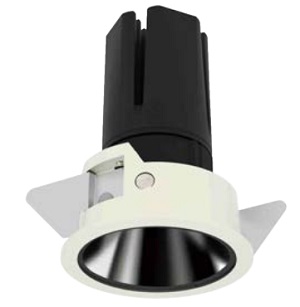

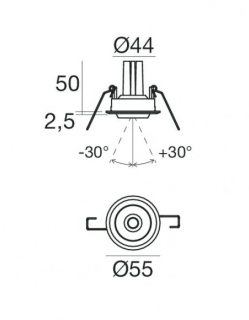

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.07 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

137LM

Finishing

WHITE

IP Rating

IP40

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

FLOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Eclectic Ø90 Dim To Warm. Adjustable Downlight (40º tilt, 360º rotation). “Cone” style façade. Necessary installation pre-frames, not included (to be orderedseparately). Recessed position ofthe LED: 41º cut-off angle. IP20 water tightness (for IP54, pleaseask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.

LINEALIGHT

LED STRIP

OUTDOOR LIGHTING

Single emission submerged or led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 112 topled LEDs with CCT of 3000 K and a CRI >90; the source luminous flux is 1096 lm, with a 109.6 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68
