LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
97402W60

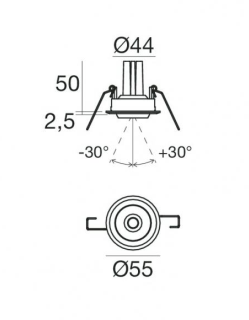

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.07 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
2W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
136LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SIMES
BOLLARD
OUTDOOR LIGHTING

The wiring of the fixtures must strictly respect the specifications. Shift Pole: Aluminium pole Ø 102 H 3000mm included. Pole must be fixed to the anchoring base (S.1469) to be securly buried in concrete or to the square plate (S.1468).

WIRING

Supply 0.2m cable section type H05RNF . Single cable entry sealed with B component epoxy resin, wired internally protected by silicon sheaths.. Isolation: CLASS II .

SPARK
TRACKLIGHT
INDOOR LIGHTING
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING

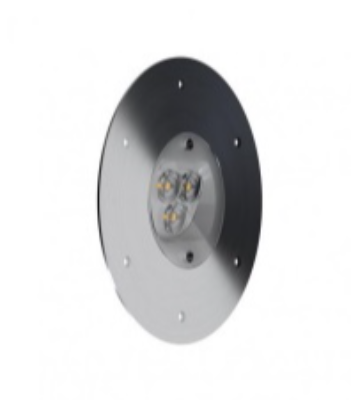

Single emission lines for outdoor application. The warm white LED light source with a elliptical light distribution is composed of 3 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.450 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.250 m length. The device features protection class III and can be floor-mounted with an outer casing, code 99972 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
PHOS
WALLWASHER
OUTDOOR LIGHTING
The Eyeconic Mini Trim Wallwash is a recessed, fixed downlight with a Ø62mm bezel, wall wash lens and a discrete removeable anti-glare guard. Unique, elegant small aperture. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
