Product Detail
Home Products Detail

Products

LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
97404W15

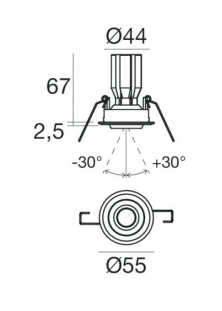

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.09 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
455LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

FORMALIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING

Square recessed motorized luminaire with retractable light head. Mounting trim and light head are made of cast aluminium, recessed light housing made of painted metal. Moto-Palla In&Out is available in 3 different light head diameters: 66mm, 100mm and 130mm. The luminaire includes brackets for trim installation on ceiling thickness max. 25 mm or trimless installation on ceiling thickness max. 30 mm. Two remote controlled DC motors drive the movements of the fixtures. The fixtures are rotatable horizontally 350° and, tiltable vertically in two directions (0°-10° In, 0°-90° Out). The movements of the fixture, as well as the intensity and the colour tuning of the light, are controlled via CASAMBI™ application.

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING
Single emission uplights for outdoor application. The super warm LED light source with a flood light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 233 lm, with a 145.6 lm/W nominal luminous efficacy. The device body is made of stainless steel and features a steel finish, processed by means of shot peening. The ingress protection degree is IP67,IK10.
WE-EF
INGROUND UPLIGHT
OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens; max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber complete with cable gland and 0.5 m of flexible PVC free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. Luminaire installation blockout and sealable junction box included in supply.

PHOS
ADJUSTABLE DOWNLIGHT
OUTDOOR LIGHTING
The Nano Eyeconic Mini Trim Adjustable is an incredibly discreet recessed, directional downlight with a ø38mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. 26° Tilt, 360° Rotation.
