Products
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
80106W00

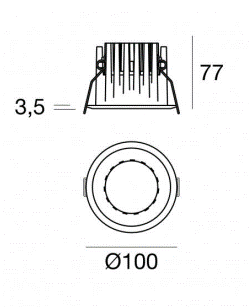

Single emission downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 arrayled LEDs. The device body is made of aluminium and features a embossed black ral 9005 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.32 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 18 W. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 89 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 18W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 1072LM
- Finishing
- BLACK
- IP Rating
- IP40
- Color Rendering
- CRI 92
- Driver
- ON/OFF DRIVER
