LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

96831W90

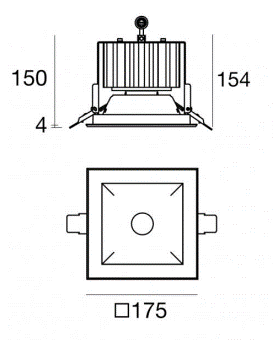

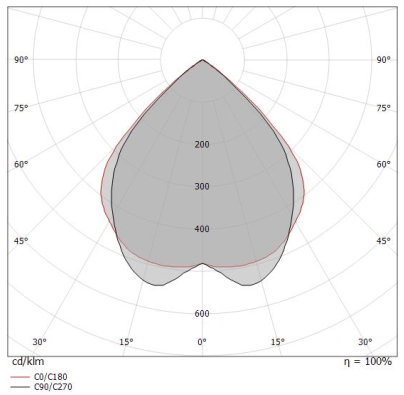

Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.5 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 157 x 157 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

15W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1745LM

Finishing

IP Rating

IP20

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

WE-EF

PROJECTOR LIGHT

OUTDOOR LIGHTING

Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation.

XAL

CEILING LIGHT

INDOOR LIGHTING

Round luminaire housing in aluminium, rolled profile, seamlessly welded; surface white powder coated; highly reflective coating for improved efficiency; suitable for wall or ceiling mounting; convenient quick mounting system without tools; completely homogeneously illuminated, satinised PMMA cover; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 80; min. 90% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; luminaire with 2 cable openings and plug-i

DALITEK

CONTROL SYSTEM

The module realizes the opening and closing control of three circuits by controlling three 20Asingle pole single throw (SPST) relays, and various logic timing control can be realizedthrough configuration. The module has an internal temperature sensor to monitor theoperating temperature to ensure safety.The module is compatible with other a dry contact input module.The module can form a control system with panel, clock, sensor and other equipment throughRS485 bus.
