Preview Real Lighting Products in Blox 3D Simulator Using IES Files
Products
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING

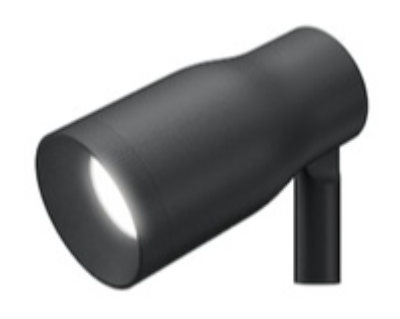

80245W30
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.120 kg. The power supply driver is not provided and is to be ordered separately. The total absorbed power is 6.5 W. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 48 mm diameter hole (in plasterboard) with an outer casing, code 89374(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 7W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 689LM
- Finishing
- BLACK
- IP Rating
- IP40
- Color Rendering
- CRI 80
- Driver
- ON/OFF DRIVER
