LINEALIGHT

RECESSED DOWNLIGHT
INDOOR LIGHTING
82478W60

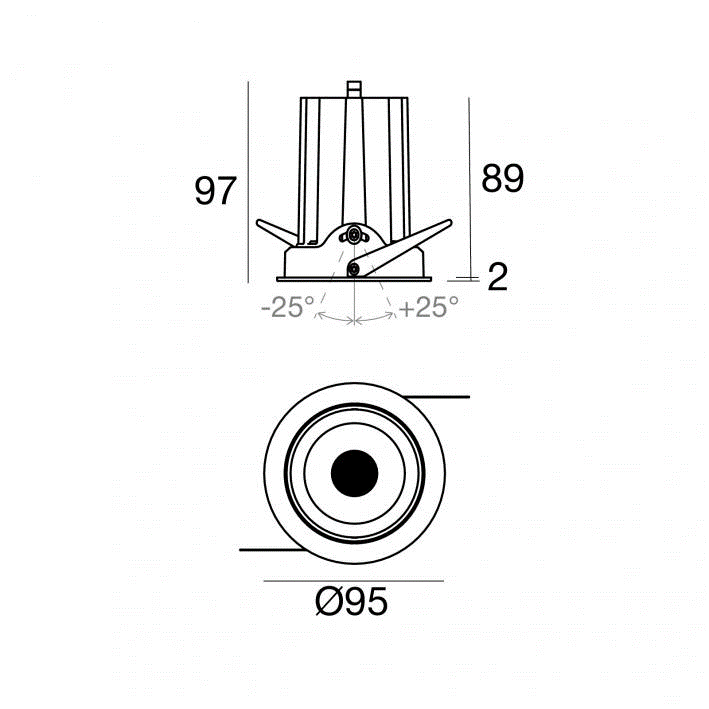

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP40; the total weight is of 0.370 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 86 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
18W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1720LM
Finishing
BLACK
IP Rating
IP40
Color Rendering
CRI 92
Driver
ON/OFF DRIVER

See more

CDN LIGHTING
RECESSED DOWNLIGHT
INDOOR LIGHTING


LED LINEAR
LINEAR LIGHT
OUTDOOR LIGHTING

Outdoor Recessed OR Surface mount Underwater rigid linear IP68 rated fixture with opal PVC extruded body and 220° beam angle in custom lengths up to 5 m. Submersible up to 1 m. Chlorine resistant up to 5 ppm and even higher resistance during shock treatment. Homogeneous lines of light up to 5 m in single piece. DIMENSION : L1000*W16*H16MM


LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.511 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.300 m length. The device features protection class III and can be ceiling-mounted, with a 92 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
WALLWASHER
OUTDOOR LIGHTING

Brand-new design with tilt angle of 20°, 30° and 40° for different wall-washer application as new solution of inground lighting. Effectively improve the light utilization rate and achieve a highly uniform wall washing effect, and meet the designers' free imagination and more solutions. The whole series adopts imported silicone sealing ring to effectively isolate the invasion of water and dust.
