LINEALIGHT

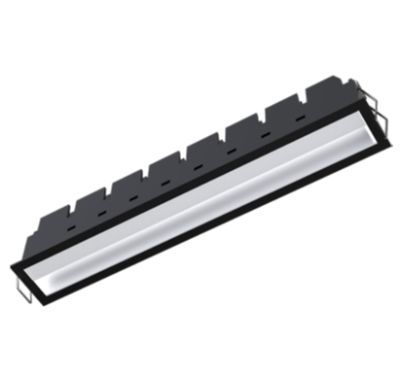

Single emission lines for outdoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 18 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 5076 lm, with a 139.1 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The total absorbed power is 41 W. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98726(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Surface mounted multi-downlight luminaire made of aluminium housing and can be attached to mounting plate without tools by interlock; converter integrated into luminaire housing. Black powder coated finishing equipped with a medium round light element; symmetrical light distribution with precise radiation characteristic. IP20

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology Clear safety glass Silicone gasket Reflector surface made of pure aluminium Optical silicone lens · BEGA Hybrid Optics® 2 mounting holes ø 4.3 mm Distance apart 123 mm 2 cable entries for through-wiring of mains supply cable ø 7-12 mm, max. 5x2,5.Compact downlight with symmetrical wide beam light distribution.
