LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

93833W60

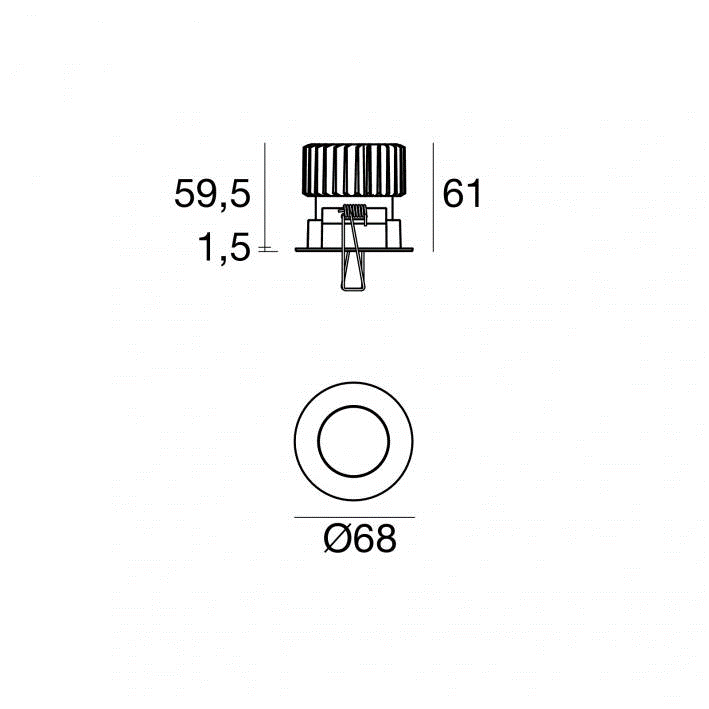

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed white ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

11W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1037LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

UNILAMP

FOOT LIGHT

OUTDOOR LIGHTING

TRAXON

LINEAR LIGHT

OUTDOOR LIGHTING

The ProPoint Linear Static White + Color is an AC Line powered luminaire in a slim profile. The ProPoint Linear is available in 8W (SO) or 12W (HO) per foot output, 4 beam options, standard & custom finishes which can meet the needs for most projects. The daisy chain topology is augmented with a separate Data Injector allowing single cable feed combining data and power to fixtures.

LUTRON

CONTROL SYSTEM

Often used in entryways to select Scene 1 and Off.• Large, rounded buttons are easy to use.• Backlit buttons with optional engraving make it easy tofind and operate the Wallstation in low light conditions.• Optional button engraving is angled up to the eye foreasy reading.• The LEDs next to each button are used duringprogramming and provide feedback when the buttonsare pressed.• Receives up to two contact closure inputs via aconnector on the back of the Wallstation.
