LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

64542W45

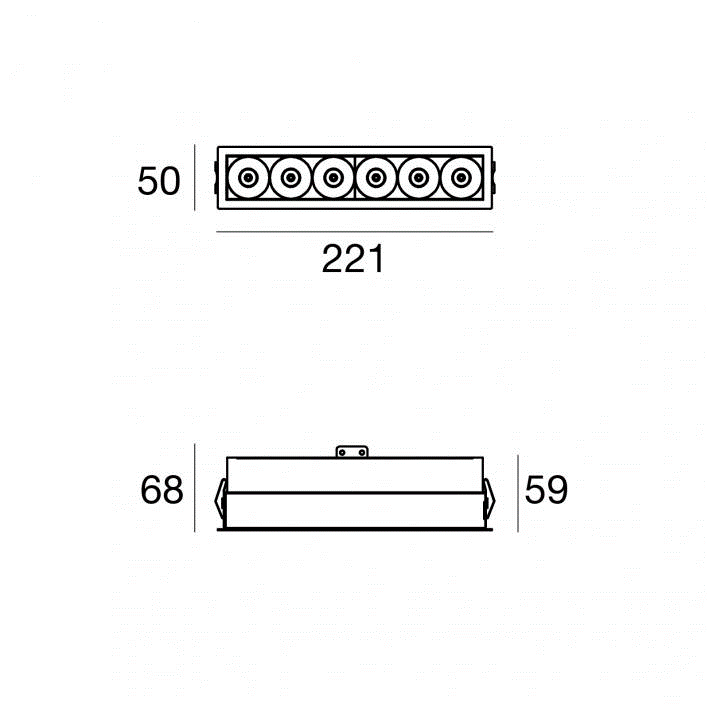

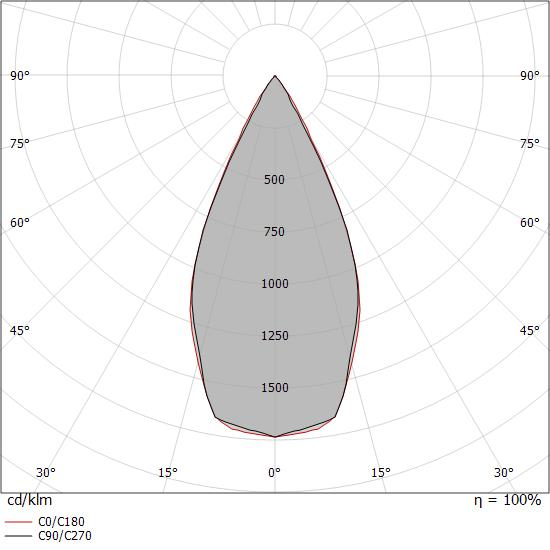

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.390 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.17 m length. The device features protection class III and can be ceiling-mounted, with a 215 x 42 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

12W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

705LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 1.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control.

WE-EF

SPOTLIGHT

OUTDOOR LIGHTING

IP66. IK07. Marine-grade, all aluminium construction. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Two cable entries. Mains voltage versions, ON-OFF Class I. Integral EC electronic converter. 24VDC low voltage versions, ON-OFF Class III. DALI (only 4W available) Class I. Knuckle permits 340° rotation, forward tilt 73° and backward tilt 90°. Remote 24VDC power supply to be ordered separately.Optical accessories are factory-installed. To be specified at time of ordering.

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Monocube are floodlights with very compact dimensions and minimalist design that blend discretely into the architecture. The luminaire housings have a smooth surface and are therefore easy to clean and to maintain. Optical film is available as an accessory in order to adapt the light distributions to the exact requirements of a lighting project. Monocube floodlights feature integral LED drivers and can be easily connected to mains voltage power supply. The sizes 3 and 4 can be equipped with Casambi ready drivers and be dimmed via Bluetooth Low Energy technology.
