BEGA

The Terra Drum series are rugged, drive-over-ready fixtures designed for all-weather in-ground applications. Available in three sizes, these IP68-rated fixtures are particularly suited to recessed facade and tree lighting applications. The wide range of emitter and optic options amount to an impressive ninety combinations to ensure a precise fit with your installation.

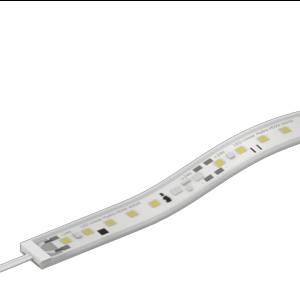

Flexible vertical neon strip, excellent thermal dissipation encapsulated with high performance grade silicone material that can be used and installed at an extreme harsh environment with temperature up to 65°C. Designed to be UV and corrosion resistant. High uniformity with no dark spot even at the terminals and uniform width across Contour body. Feed-in connector and profile for seamless mounting and installation. Suitable for Indoor / Outdoor application.

The Energi Savr Node (ESN) family is a group ofmodular products for the control of lighting loads. 0-10 V/switching power module can be used in anAthena system.• Includes QS link for seamless integration of lightsand controls.• Auto sink and source capability for 0 –10 V- outputs.• Buttons on the module provide override control.• LEDs on the module provide diagnostic information.• 0-10 V/switching power module can be used for0 –10 V- and switching applications only.

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, efficient high gloss aluminum reflector in combination with hybrid lens for narrow beam light distribution in shallow luminaire housing, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 16°, luminous flux: 2723 lm, wattage: 26 W, delivered lumens 105 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 183 × 70 × 183 mm, weight 2.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
