Product Detail | Bloxlimited

LINEALIGHT

LINEAR DOWNLIGHT

INDOOR LIGHTING

82940W07

Single emission downlights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 3 powerled LEDs. The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.28 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.11 m length. The device features protection class III and can be ceiling-mounted, with a 114 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

9.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

518LM

Finishing

BLACK

IP Rating

IP20

Color Rendering

CRI 92

Driver

ON/OFF DRIVER

SPARK

TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Various of different votages from 30 to 55w.

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

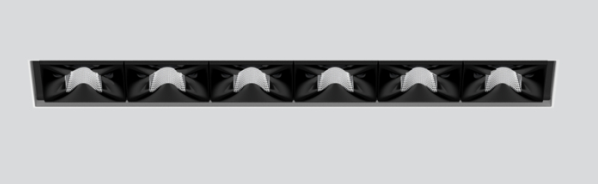

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six medium round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 33°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; UGR ≤ 10; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free;

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source is composed of 36 powerled LEDs. The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 4.8 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be floor-mounted with an outer casing, code 98726 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

SURFACE TRACKLIGHT

INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.390 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.
