LINEALIGHT

IP68, dot free linear light line with a 16 mm x 16 mm cross section. Opal PVC extrusion body sealed with ultrasonic welded end caps and a twin barrier against water ingress. Special PVC material composition, which is Chlorine resistant for continuous immersion in water with chlorine concentration up to 5 ppm. Length are freely configurable between 544 mm and 5,044 mm in steps of 62.5 mm. Fixture comes with a backside cable exit with 5 m open end cable (chlorin resistant). Light source assembled using state of the art automated Reel-to-Reel production process supporting LED Linear™ Tj Away® thin flexible circuit board technology.

The Traxon Linear Go Mini is a DC line powered exterior luminaire used to

distinguish facades, walls, and architectural landmarks with a powerful, even

color wash effect. Linear Go’s high-value design features efficient electrical

and optical systems, making it ideal for budget-conscious projects. Dimension 600mm x 30mm x 77.1mm.

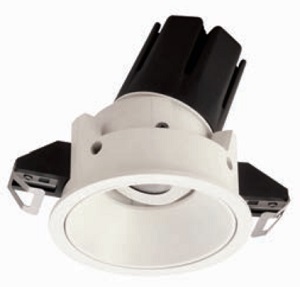

Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; 0-10V Dim Driver; LED 9W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire’s weight is approximately 300g; rotation 355° and pivot max. 30°; CCT 2700K with an LED Output of 900lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; bea
