LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

76090W07

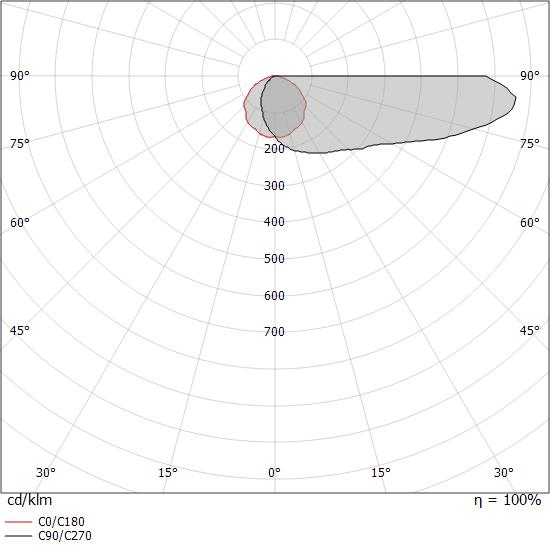

Single emission wall lights for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.15 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights-mounted with an outer casing, code 98111(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

227LM

Finishing

WHITE

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Ginko 2.4 projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap). Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 608 lm (3000K, 7W, CRI 90)/Delivered lumen output: 113 lm (3000K, 36°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: optical range 9°—36°: optical system consisting of a plano-convex lens combined with a high-quality technical filter, adjustable with a mechanical focusing system for extreme flexibility of choice of light emission.CRI Colour Rendering Index: 80, >90. TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø54X83 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015.

APEX

WALLWASHER

OUTDOOR LIGHTING

APEX linear Wallwasher luminaire light, available in 3 different beam angle 30°x80°, 45°x85° and 60°x95°. Luminaire dimension (H)18.77mm x (W)17mm x (L)1000mm. 70LEDs/M. IP65.

FORMALIGHTING

BOLLARD

OUTDOOR LIGHTING

Wall and pole mounted light system with body visor housing and ribbed LED dissipator in cast aluminium, inclusive weatherproof silicone gasket and concealed stainless steel screws. Light pole in extruded aluminium. The safety glass is fitted within the luminaire for easy cleaning. Easy installation via the included hard wire rubber cable and IP67 fast connector.

SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
