LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

77040W07

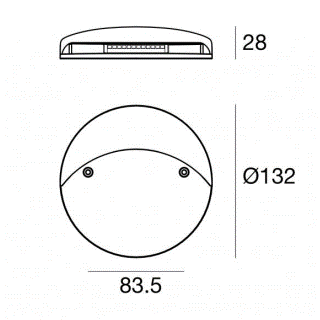

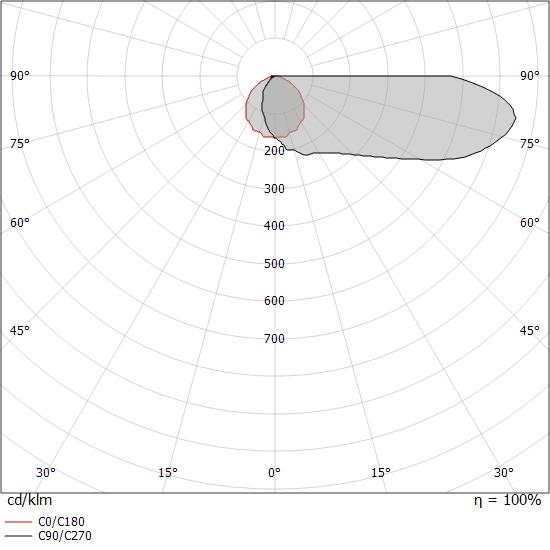

Single emission wall lights for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.15 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights-mounted with an outer casing, code 98111(for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

1.6W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

77LM

Finishing

WHITE

IP Rating

IP66

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

LED LINEAR

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

24 V, IP67 protected and IK10 certified, linear LED luminaire for indoor and outdoor in-ground installation. Suitable for installation into roads and parking lots according to EN 60598-2-13. To be walked on and traversed by vehicles with air filled tires (including trucks used for delivery). Polyurethane encapsulation offering a premium water proof sealing (values), UV resistance (no coloration or increase of absorption) chemical stability against urban gazes and protection against abrasion. Stainless Steel V4A housing delivered with male/female IP67 connectors. Available either with an opal top layer or transluscent with an internal 10° and 30° lenses for wall grazing. Light source assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

SPARK

RECESSED DOWNLIGHT

INDOOR LIGHTING

Recessed fixed square downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector come with Chrome black, White and Silver finish. Honeycomb accessory available upon request.

FLOS

SURFACE TRACKLIGHT

INDOOR LIGHTING

Spotlight to be installed on 3-phase track. with LED light source. 220-240V, 50-60Hz power supply integrated. Construction material Aluminium. Beam angle 32° Flood
