LINEALIGHT

WALL LIGHT
OUTDOOR LIGHTING

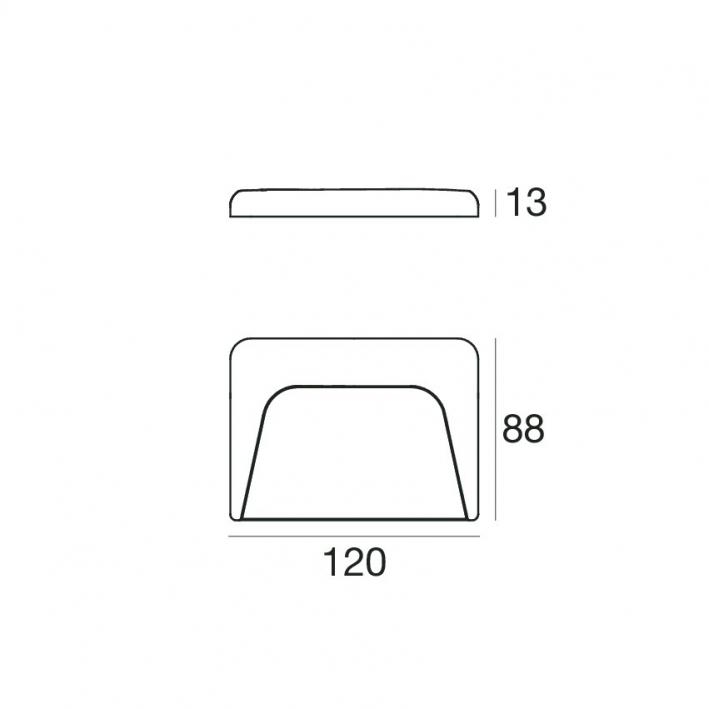

97167W07

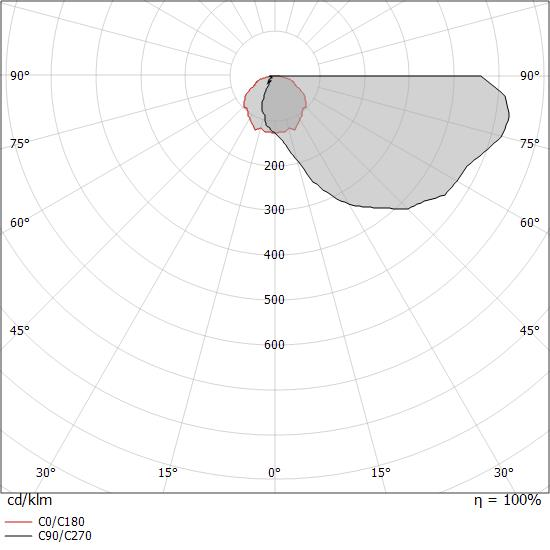

Single emission wall lights for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 12 topled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.170 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
1W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
89LM
Finishing
WHITE
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.535 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99914 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LUCELIGHT
SURFACE MOUNTED LIGHT
OUTDOOR LIGHTING
Wall mounted for outdoor applications, single beam surface mounted (wall). Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006. Appliance class: class III. Energy efficiency class: F (light source) in accordance with EU 2019/2015 tested and approved via E.O.L. (End Of Line) test with functioning test and check of electrical power consumption
COLORS
LED STRIP
INDOOR LIGHTING

Max.length : 5000mm, Cutting unit : 8leds/100mm, LED pitch : 12.5mm, Min.bend diameter : 60mm, Mounting : PVC clip/silicone clip. Input voltage DC24V.
