LINEALIGHT

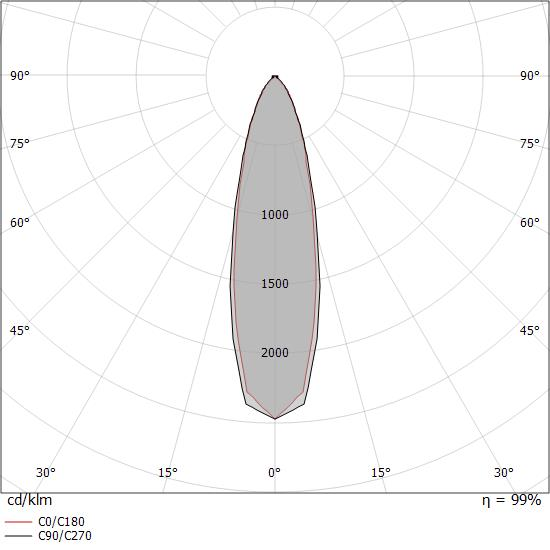

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, housing locked with a grub screw, ceiling mounting: 2 drilled holes Ø 4.5 mm, spacing 35 mm, cable gland: cable entry for recessed cable Ø 7‑10 mm , connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 37°, luminous flux: 330 lm, wattage: 5 W, delivered lumens 61 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 66 × 87 × 66 mm, weight 0.57 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Semi-Recessed adds a touch of class to the space, the slender base with an integrated power supply brings extra flair and elegance. TicTok Series focuses on eco-friendly design and modularity. TicTok’s tool-free and interchangeable LED module facilitates design flexibility and ease of on-site maintenance. The tool-free interchangeable LED module is available in Ø25, Ø35, Ø45, Ø58 and Ø75mm head sizes, trim, and trimless. It provides full versatility with tiltable 70° and rotatable 350° angle.

Linear miniaturised recessed luminaire with 5 optical elements for LED lamps - fixed optics. Despite the ultracompact size of the product, the patented technology of the optic system guarantees an efficient flow and a high level of controlled glare visual comfort. Main body with die-cast aluminium radiant surface, version with perimeter surface frame. Metallised, thermoplastic, high definition Opti Beam reflectors, integrated in a set-back position in the anti-glare screen.

The ION R Surface Mounted Downlight provides a practical and aesthetically pleasing lighting option in contexts such as between ceiling slats. Comes with an extensive range of accessories, this versatile downlight can be configured to enhance any space.
