LINEALIGHT

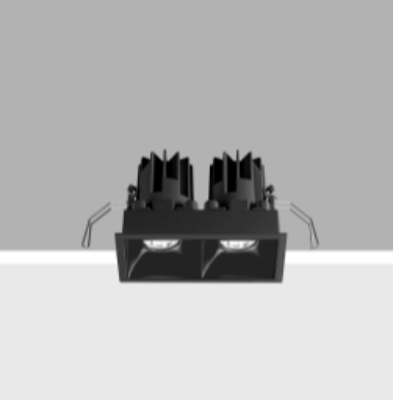

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications

Light fixture with high-performance LED light sources. Drive-over recessed floor installation with floorprotruding cap. All the versions are drive-over up to 5000Kg. Due to the low height of the cap, Megara 90 is also suitable for installation in walk-over areas, being careful to avoid areas of direct transit. Composed by body, cap, diffuser, recessing box. Body and cap in painted EN AB44100 aluminium, silicone gaskets; provided with 30 cm-long pre-resined three-pole connection cable. Electronic ballast integrated in the body. Diffuser in UV resistant polycarbonate.Power connection to the mains by means of the IP67 connector supplied with the light fixture, which can be housed in the recessing box and is suitable for cables with a diameter from 5 to13.3 mm. Fixing to the recessing box is ensured by means of anti-vandal screws TORX. Recessing box for laying in reinforced polymer to be ordered separately. Radial emission beam optic. White monochromatic LEDs available in 3 colour temperatures in AISI 316 stainless steel. Painted die-cast aluminium with 3-stage outdoor treatment. Technical features of light fixtures in compliance with EN60598-1 and part 2-13. IP Rating IP65-IP67.ENEC approved.Insulation class I.

ound ceiling-recessed luminaire for outdoor installation, hard anodized black aluminium body and stainless steel AISI 316 front trim, tempered safety glass, moulded silicone gasket. Remote constant current max 700 mA driver needed, with 1 CREE XHP35 HD LED. IP68 rating.

The lumanire is made of aluminium and reflector is Plastic. The fixture head can tilt in the range of -15 to 45 degree. The fixture head is 360 degree rotatable. Finish White or Black powder coated. Anti-glare ring is black on all variants. DIMENSION: Width x Height x Length (mm) | 165 x 90 x 180.
