Preview Real Lighting Products in Blox 3D Simulator Using IES Files
Products
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
82075W10

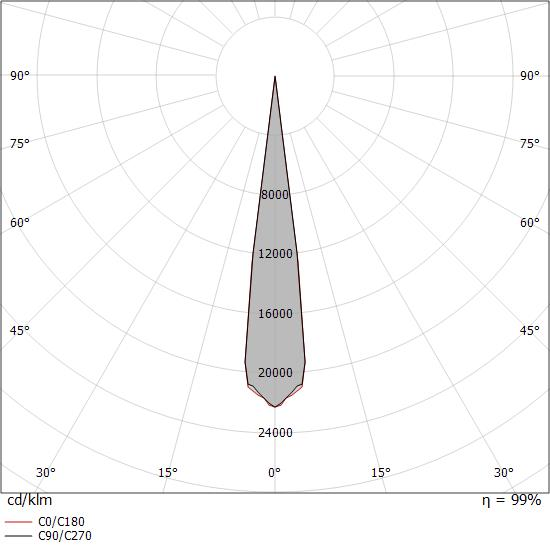

Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a chalk white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.13 kg. The power supply driver is
not provided and is to be ordered separately. The power supply cable is included and features a 0,17 m length. The device features protection class III and can be ceiling-mounted with an outer casing, code 98502 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
Specification
- Power
- 4W
- Color Temperature
- 3000K
- Light Source Type
- LED
- Lumen Output
- 36LM
- Finishing
- WHITE
- IP Rating
- IP20
- Color Rendering
- CRI 92
- Driver
- ON/OFF DRIVER
See more
