Product Detail
Home Products Detail

Products

LINEALIGHT

CEILING LIGHT
INDOOR LIGHTING
82264W45

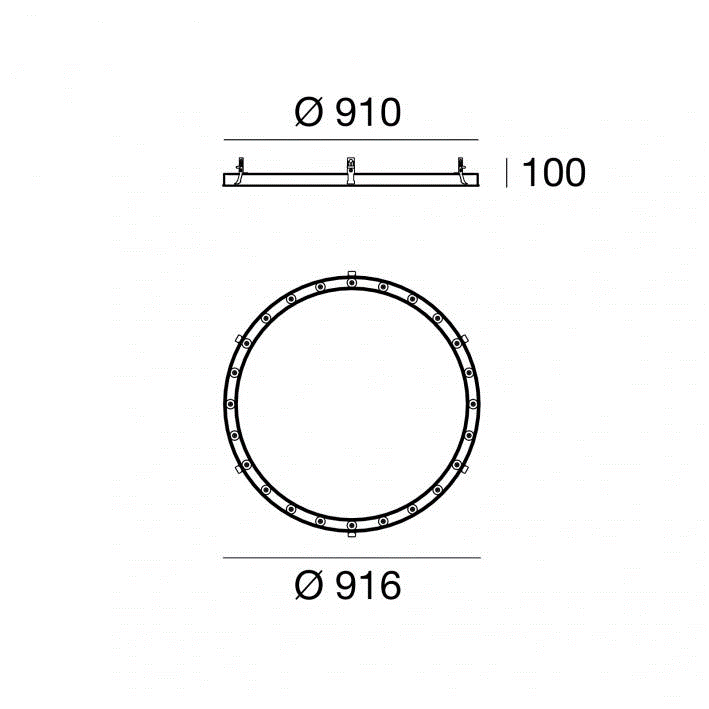

Single emission ceiling lights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 24 powerled LEDs. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 4.3 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.1 m length. The device features protection class III and can be ceiling-mounted, with a 912 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
46W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
3101LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

PHOS
WALLWASHER
OUTDOOR LIGHTING
The Eyeconic Mini Trim Wallwash is a recessed, fixed downlight with a Ø62mm bezel, wall wash lens and a discrete removeable anti-glare guard. Unique, elegant small aperture. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
NEMO
WALL LIGHT
INDOOR LIGHTING
Single emission projectors for indoor application. The super warm white LED light source with a shaper medium distance light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 98; the source luminous flux is 2799 lm, with a 103.7 lm/W nominal luminous efficacy.
MEYER
INGROUND UPLIGHT
OUTDOOR LIGHTING

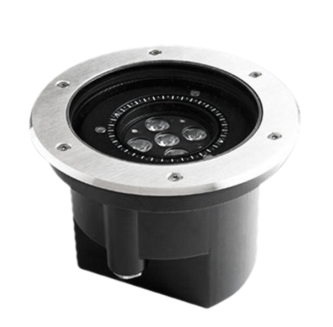

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑15, 0,8 m cable H07RN‑F3G1,5, integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 8° / 47°, luminous flux: 369 lm, wattage: 5 W, delivered lumens 72 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions: Ø 200 mm, width 124 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

LIGHTFORMS
WALL LIGHT
INDOOR LIGHTING
Tin Can downlights are available in three sizes with multiple outputs, CCT, CRI and beam spread options. Hang Tin Can luminaires from ceilings as stem-mounted pendants or attach directly as surface-mount fixtures.
