LINEALIGHT

PENDANT
INDOOR LIGHTING
65116W00

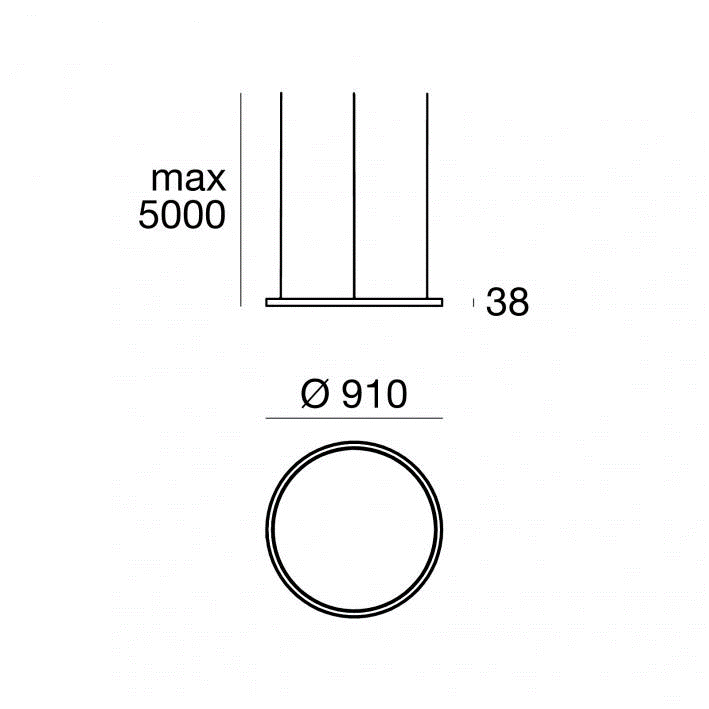

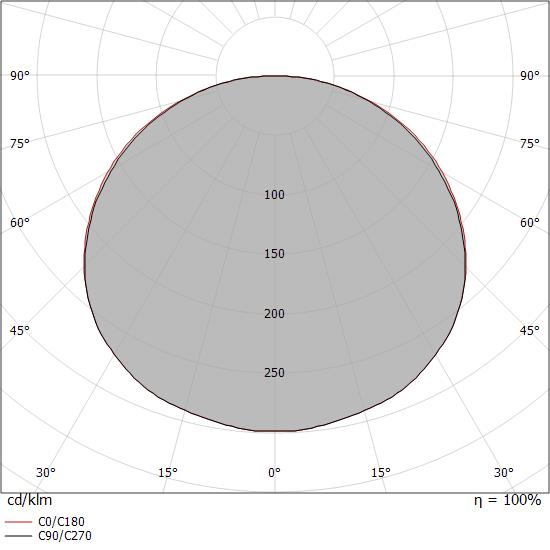

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 210 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 5.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
45W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
3178LM
Finishing
BLACK
IP Rating
IP40
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

PLATEK
SPOTLIGHT
OUTDOOR LIGHTING

IP65 Spotlight body, bracket and closure flange made of AISI 316L stainless steel with pickling and passivation treatment. With the addition of SurfShield a special scratch-resistant finish treatment that ensures increased resistance of the steel to chemical and atmospheric aggressions. Provided with surge protection electronics and protection against polarity reversal during wiring. Supplied with 5M of cable to powered a 24V CV transformer to be wired in parallel. IP65/IP68, IK08

LINEALIGHT
RECESSED LINEAR LIGHT
INDOOR LIGHTING

Single emission systems, lines or lines for indoor application. The warm white LED light source is composed of 156 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1470 lm, with a 122.5 lm/W nominal luminous efficacy. The device body is made of aluminium alloy 6060 and features a text white ral9003 finish, processed by means of powder coating with thermosetting powders.

SPARK
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
Recessed mini downlight made of aluminium housing. Cut-out size Ø35mm, suitable for display showcase, shelf and cabinet application.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is notprovided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 99847 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions
