LINEALIGHT

PENDANT

INDOOR LIGHTING

65120W00

Single emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 336 topled LEDs. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 7kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 5 m length. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

70W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

4944LM

Finishing

BLACK

IP Rating

IP40

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

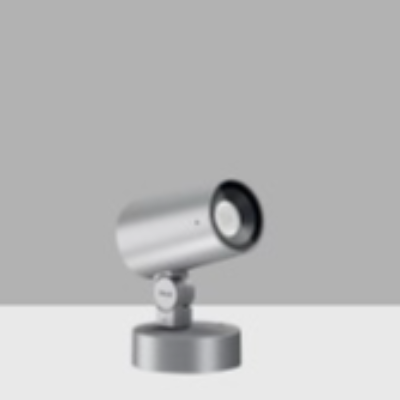

PUK

SPOTLIGHT

OUTDOOR LIGHTING

Floodlight for outdoor installation on a façade/wall, with 355° swivel base and allowing horizontal adjustment of +90° / -40°. Phospho-chromatised and polyester powder coated die-cast copper-free aluminium base and head, tempered safety glass, moulded silicone gaskets and o-rings, with screws in stainless steel. Swivel joint with graduated scale and mechanical aiming lock. Built-in LED driver, with 1 COB CREE “CXB 3590” LED. IP66 rating.

SALIOT

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

RANGE OF MOTION

HORIZONTAL -180-175° VERTICAL 0-30°

SIZE & WEIGHT

FRAME : DIA 163 / H : 177 / MOUNTING DEPTH : 172 / HOLE DIAMETER 150MM / WEIGHT 1.8KG

FORMALIGHTING

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Round or square wall/ceiling luminarie with body in cast aluminium, inclusive of vandal resistance polycarbonate opal diffusers and weatherproof durable silicone gasket. Countersunk external screws made of stainless steel. Simple to install with 2 cable entries to facilitate through wiring and easy click system removable diffuser.
