Product Detail | Bloxlimited

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

62935W00

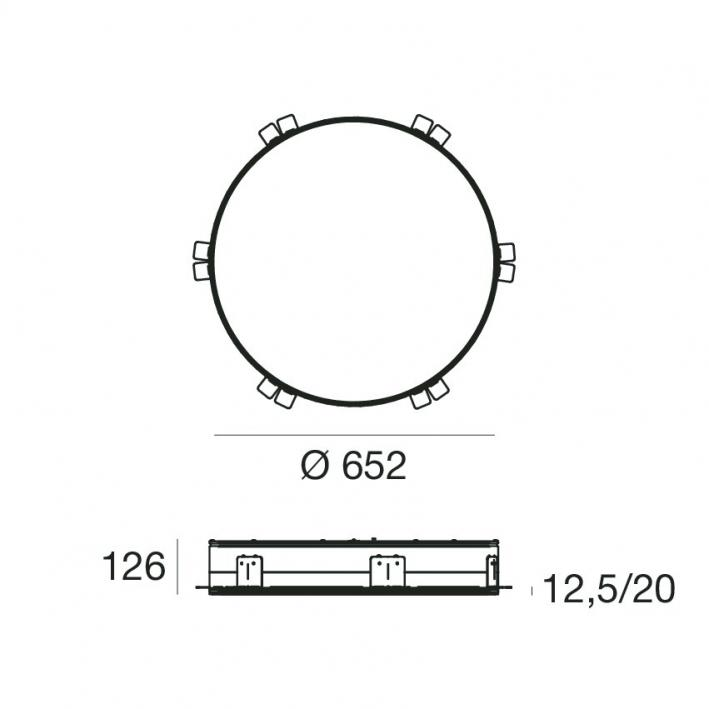

Single emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 8190 lm, with a 136.5 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP20; the total weight is of 11.32 kg. The device features protection class I and can be ceiling-mounted, with a 655 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power

66W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

6122LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

XAL

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with four wide flood square light elements; symmetrical light distribution with precise radiation characteristic, beam angle 71°; high quality reflector with micro-faceted, aluminum-vaporised surface; black reflector; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

LINEALIGHT

FLOODLIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. Luminaire body is made of die-cast aluminium EN AB - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66; IK10
