LINEALIGHT

CEILING LIGHT
OUTDOOR LIGHTING
83698W15

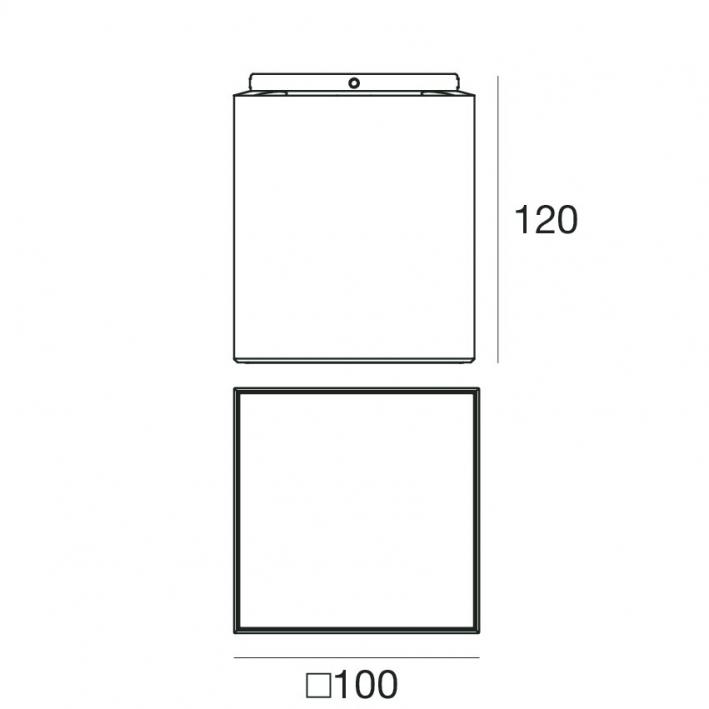

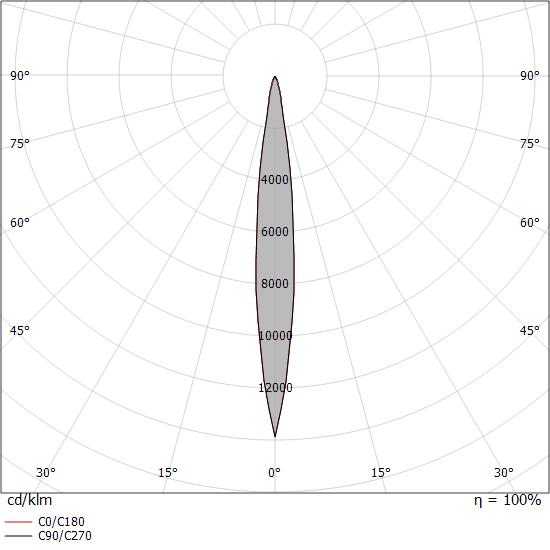

Single emission ceiling lights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.35 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
13W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1374LM
Finishing
BLACK
IP Rating
IP65
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SPARK
TRACKLIGHT
INDOOR LIGHTING
Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of uv resistant polycarbonate and features a embossed black ral 9005 finish, processed by means of liquid painting; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.2 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.15 m length. The device features protection class III and can be ceiling-mounted, with a 65 x 65 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
SPARK
WALLWASHER
OUTDOOR LIGHTING

Linear 33 series an elegant slim, low profile and highest intensity LED wall-washer luminaire. It provides a higher vertical distance for wall wash application compare with same power consumption and distribution luminaire. Suitable for Indoor and Outdoor application. IP66

UNIOS
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

With a minimal cylindrical design and superior colour rendering ability, the Titanium Surface Mounted Downlight is perfect for enhancing any interior space, such as living areas and hallways. In addition, its surface-mounted construction makes the downlight ideal for installations on concrete ceilings. The ingress protection degree is IP20.
