81674W25

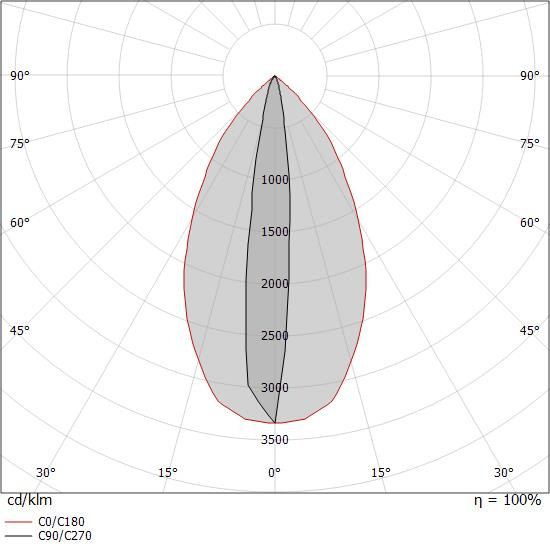

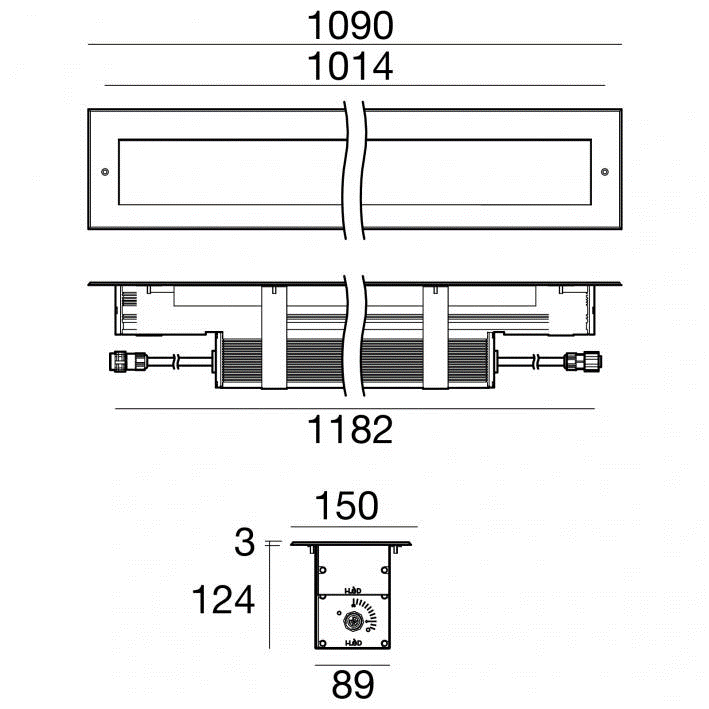

Single emission lines for outdoor application. The warm white LED light source with a elliptic light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 11 kg. The total absorbed power is 89 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99772 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
89W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
5622LM
Finishing
ANODISED ALUMINUM
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

ENDO
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed fixed ceiling downlight come in trim and trimless version, aluminium housing.

MEYER
PROJECTOR LIGHT
OUTDOOR LIGHTING
Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket powder coated aluminum: 2 drilled holes Ø 8.5 mm, spacing 50‑70 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient aluminum reflector with satin finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 92° / 108°, luminous flux: 2870 lm, wattage: 26 W, delivered lumens 110 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 183 × 70 × 183 mm, weight 2.06 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m lenght. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard) with an outer casing, code 99848 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a diffused light distribution is composed of 240 stripled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.640 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.220 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
