LINEALIGHT

WALLWASHER
OUTDOOR LIGHTING
81674W15

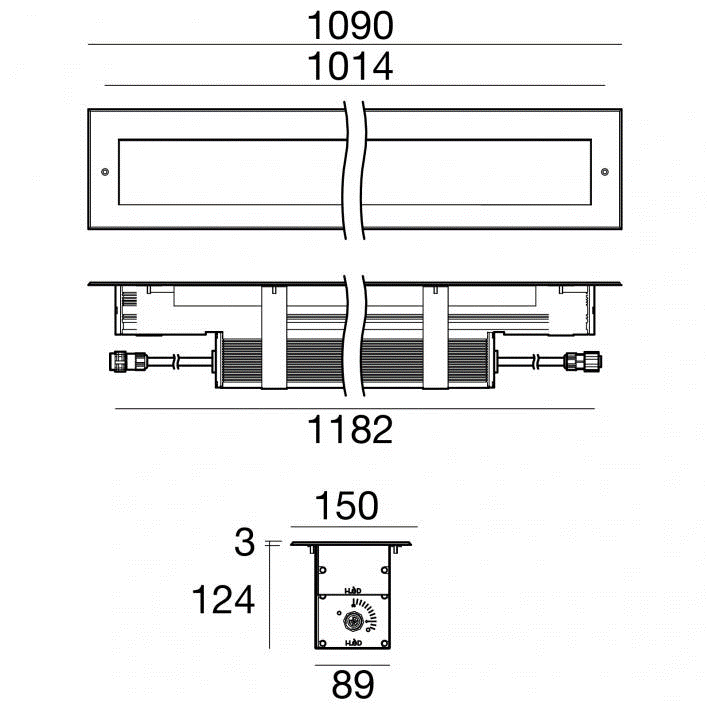

Single emission lines for outdoor application. The warm white LED light source is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 11 kg. The total absorbed power is 89 W. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be floor-mounted with an outer casing, code 99772 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Specification

Power
89W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
7365LM
Finishing
ANODISED ALUMINUM
IP Rating
IP67
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LUCI
LINEAR LIGHT
OUTDOOR LIGHTING
Beautiful surface emission enhances the versatility of design possibilities. Available in 160 different lengths ranging from 25mm to 4000mm for IP67 specification. Revolutionize designs with sleek 5.8mm dot-free tape light! 9.7 W/m, 535 lm/m.
MEYER
SPOTLIGHT
OUTDOOR LIGHTING
Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket powder coated aluminum with tilt scale: 2 drilled holes Ø 7 mm, spacing 40 ‑ 60 mm, 1 centre hole Ø 21 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.
LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.920 kg. The device features protection class I and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS
RECESSED DOWNLIGHT
INDOOR LIGHTING
This ceiling recessed downlight is highly functional, with a 360° rotate and 45° tilt. This allows for more adjustment at higher angles needed to illuminate a space at higher level. High lumen output capability and available in various finishes and colour temperatures, this light fitting is perfect for retail, workplace and hospitality lighting schemes.
